PrimaCare PC- 500 Pinnacle Powered Wheelchair

PrimaCare PC- 500 Pinnacle Powered Wheelchair

Combines robust mobility, smart electromagnetic braking, and customizable comfort in a lightweight, foldable aluminum alloy frame.

The PrimaCare PC-500 Pinnacle Powerchair brings together powered mobility, ergonomic adjustability, and effortless transport in one sleek design. Engineered with a durable yet lightweight aluminium alloy frame, it easily folds down into a compact profile for simple vehicle boot storage and travel convenience. Powered by dual 250W DC brushless motors and dual 6Ah lithium-ion batteries, the PC-500 delivers smooth, dependable performance with speeds up to 6 km/h and an extended recharge mileage of up to 24 km. An intuitive 360° joystick controller ensures precise maneuvering through tight spaces, assisted by an 835 mm turning radius and solid, puncture-proof tyres built to handle varied terrain. For added safety and tailored comfort, it features smart electromagnetic braking, a gas-spring adjustable backrest, and customizable pedal positioning.

Specification

Features

Document

Specification

Dimensions

Expanded Size (L × W × H)

1100 × 600 × 1000 mm

Folded Size (L × W × H)

360 × 600 × 800 mm

Performance & Power

Maximum Load Bearing

150 kg

Maximum Speed

6 km/h

Recharge Mileage

24 km / 2 batteries

Motor Type

DC Brushless Motor

Motor Power & Quantity

250W × 2 pcs

Battery Capacity

6Ah × 2 pcs (DC 24V Input)

Maximum Gradeability

12°

Turning Radius

835 mm

Highest Obstacle Capability

40 mm

Chassis & Wheels

Front Wheel

8" × 1.7" Solid Tyre

Rear Wheel

12" × 2.2" Solid Tyre

Frame Material

Aluminium Alloy

Warranty

Terms and Conditions

One year on frame chassis & brakes against manufacturing defects, faulty materials and workmanship only.
Any alterations, misuse, abuse, or accidental damage void this warranty.

Features

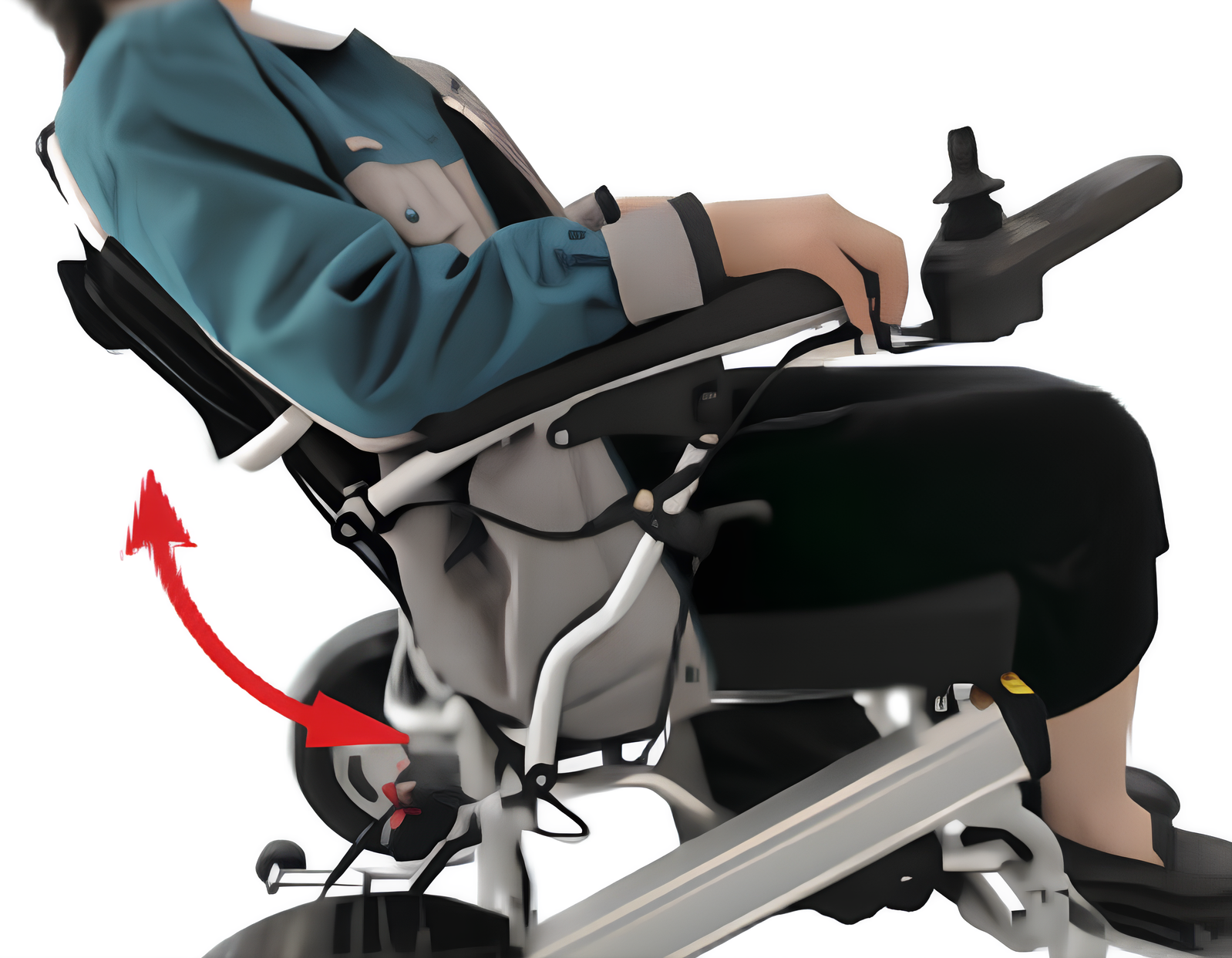

Adjustable Reclining Backrest Angle

The backrest angle can be adjusted to provide a more comfortable seating position for users of different heights.

Bluetooth support

Wireless Bluetooth controller for caregiver to control wheelchair movement remotely within 10m.

Dual motor

Dual motors enhance maneuverability, allowing for precise control and easy navigation through tight spaces and around obstacles.

Extendable Footrest

The footrest can be extended forward to provide a more comfortable leg position for taller users.

Foldable & Space-Saving

Easily folds away for quick storage in tight spaces, pantries, or even the trunk of your car — convenience always within reach.

Joystick controller support

Joystick design allows for intuitive operation, making it easy for users of all ages and abilities to control their wheelchair with minimal effort.

Lithium battery

Lithium battery offers an impressive energy density, ensuring that your devices run longer on a single charge.

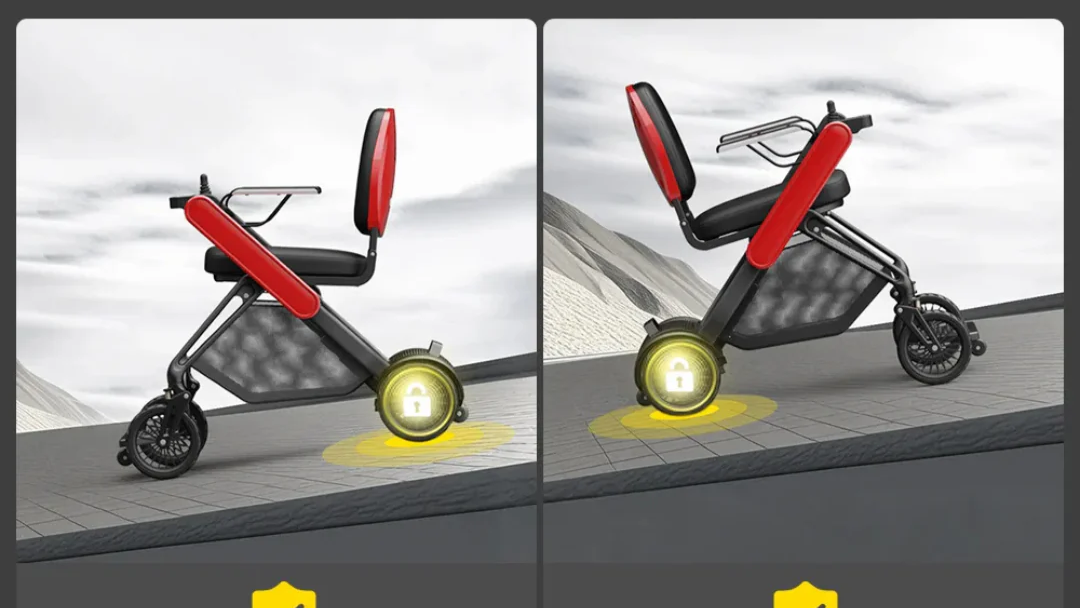

Smart Electromagnetic Braking

Features an intelligent automatic braking system that engages immediately when you release the joystick. This prevents unwanted rolling, rollback on inclines, and ensures precise, safe stopping power at all times.

Document

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.

User Manual

PrimaCare-PC-500-Pinnacle-Powerchair-user-manual.pdf
